Viprotech Vipromat-S semiautomatic screen printing machines
Viprotech, Vipromat-S semiautomatic screen printing machines
- Reference No.: 37081
- Manufacturer:Viprotech
- Type:Vipromat-S semiautomatic screen printing machines
- Year:1996

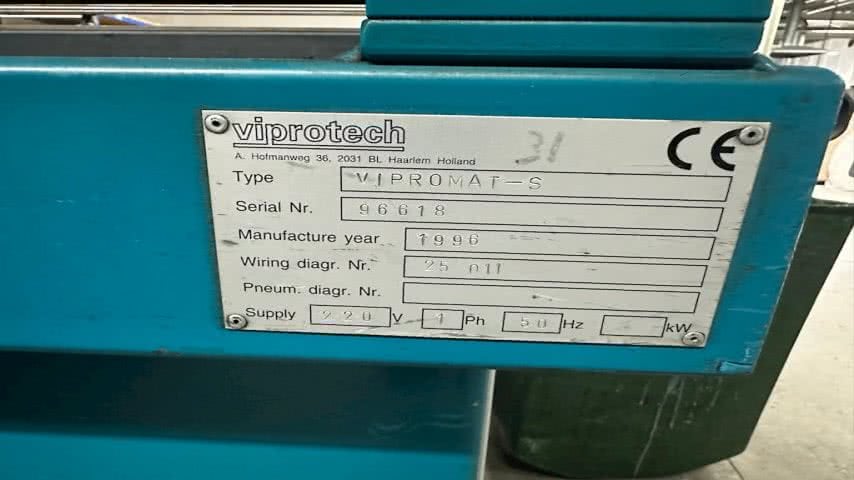

- Serial No.: 96618
- Size:700 x 1000 mm
- Status:In production
- Location:Germany
- Price:on request
- Incoterm: FCA
- Description and documents: :
- The Vipromat-S semiautomatic screen printing machines, produced by Viprotech in 1996, are currently in production and located in Germany. These machines have a format of 700 x 1000 mm and can accommodate a maximum sheet size of 885 x 1250 mm with a maximum stock thickness of 25 mm. The maximum printing size is 700 x 1000 mm, and the maximum frame size is 1125 x 1500 mm. The air consumption is 6 bar at 20 nl/min, and the off-contact is adjustable from 3 to 28 mm. The fine registration adjustment ranges from +20 to -20. The squeegee speed can be set between 0.2 and 1.2 meters per second, enabling a maximum of 850 prints per hour. The machine dimensions are 170 cm in length and 160 cm in width, with a weight of 435 kg. The squeegee angle can be adjusted between 75 and 90 degrees. The electrical connection required is 230 V, 50 Hz, 1ph+N+Pe, 3 kW. The delivery terms are FCA (Free Carrier), which means the seller delivers the goods to the carrier appointed by the buyer at the seller's premises.
- semiautomatic screen printing machines
- Maximum printing size 700 x 1000 mm
- Maximum frame size 1125 x 1500 mm
- Maximum sheet size 885 x 1250 mm
- Max. stock thickness 25
- Off-contact variable 3 - 28
- Max. nr of prints/hour 850
- Fine register adjustm +20 / -20
- Squeegee speed m/sec 0,2 - 1,2
- Squeegee angle adjust 75 - 90º
- Machine weight 435 KG
- Electrical connection 230 V, 50 Hz, 1ph+N+Pe, 3 kW
- Air consumption 6 bar, 20 nl/min
- Length 170 cm
- Width 160 cm
