    Viprotech, Vipromat-S semiautomatic screen printing machines

      General Data:

    • Reference Number: 37083
    • Manufacturer:Viprotech

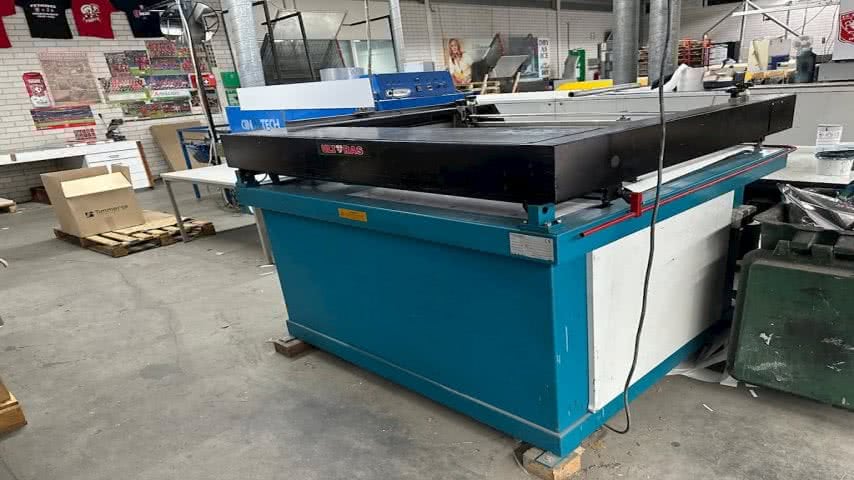

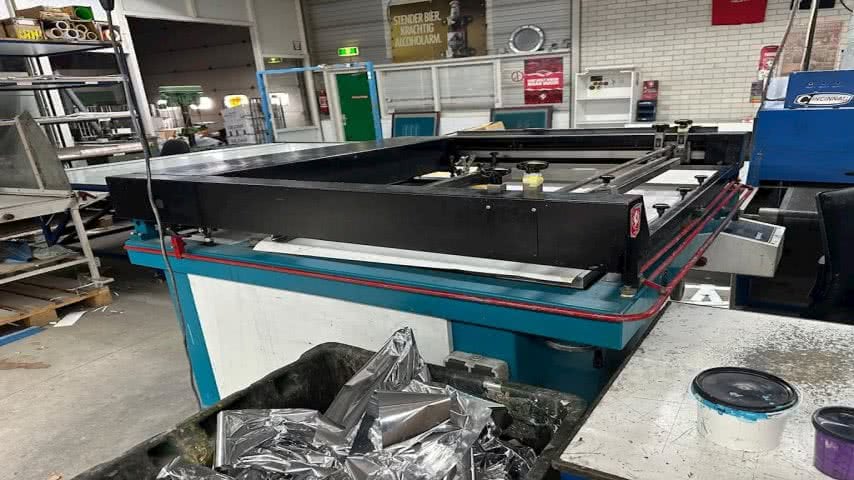

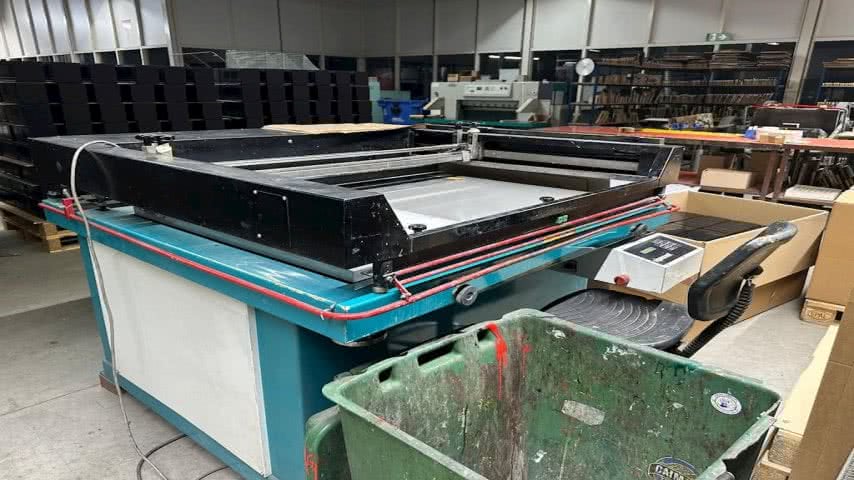

    • Type :Vipromat-S semiautomatic screen printing machines
    • Year:1996

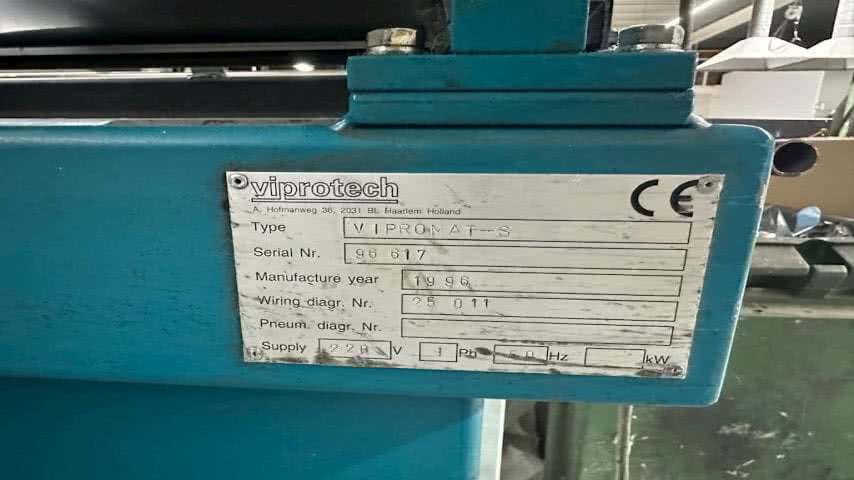

    • Serial No.: 96617
    • Size:700 x 1000 mm
    • Status:in production
    • Location:Germany
    • Price:on request
    • Incoterm: FCA
    • Please call us at: +49 (0) 2432-98 595-0

      or

      Please call us at: +491732611022

      Product description:

    • Product description English
    • Description:

      • Air consumption 6 bar, 20 nl/min
      • Squeegee angle adjust 75 - 90º
      • Maximum printing size 700 x 1000 mm
      • Off-contact variable 3 - 28
      • Maximum sheet size 885 x 1250 mm
      • Fine register adjustm +20 / -20
      • Machine weight 435 KG
      • Max. nr of prints/hour 850
      • Max. stock thickness 25
      • semiautomatic screen printing machines
      • Width 160 cm
      • Electrical connection 230 V, 50 Hz, 1ph+N+Pe, 3 kW
      • Squeegee speed m/sec 0,2 - 1,2
      • Length 170 cm
      • Maximum frame size 1125 x 1500 mm
