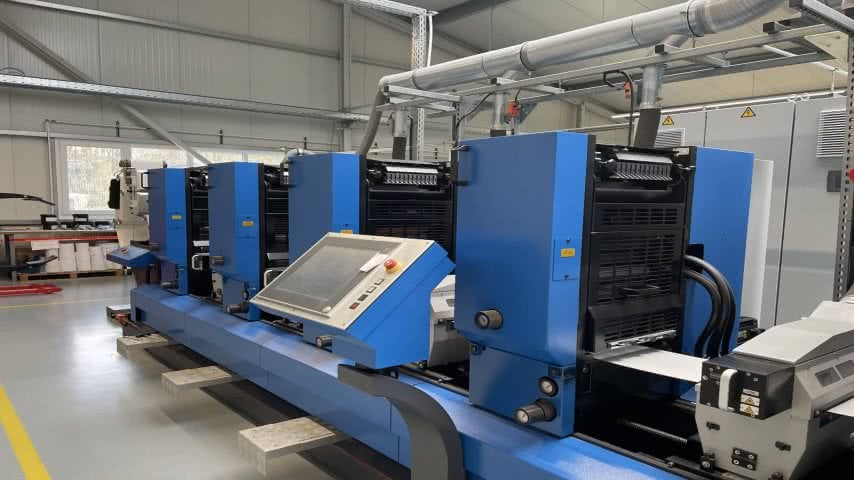

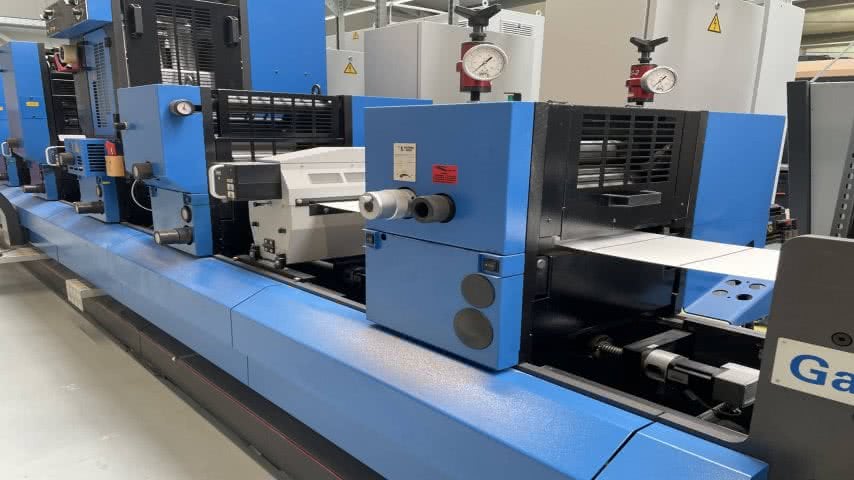

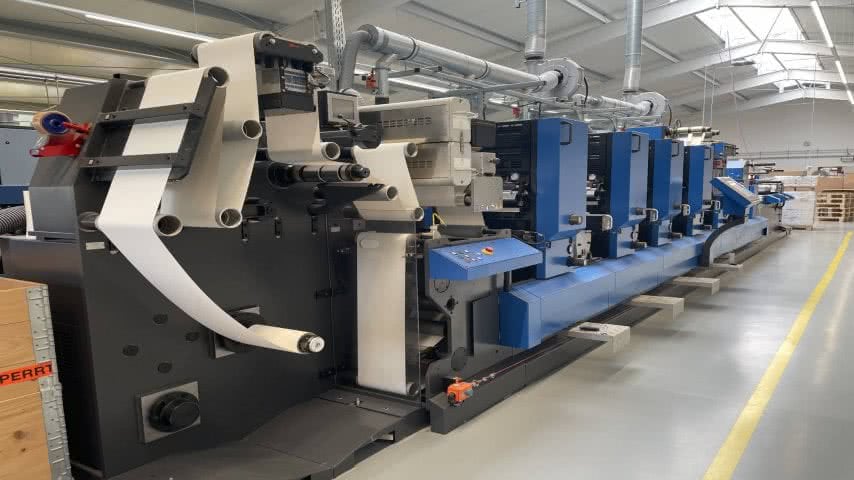

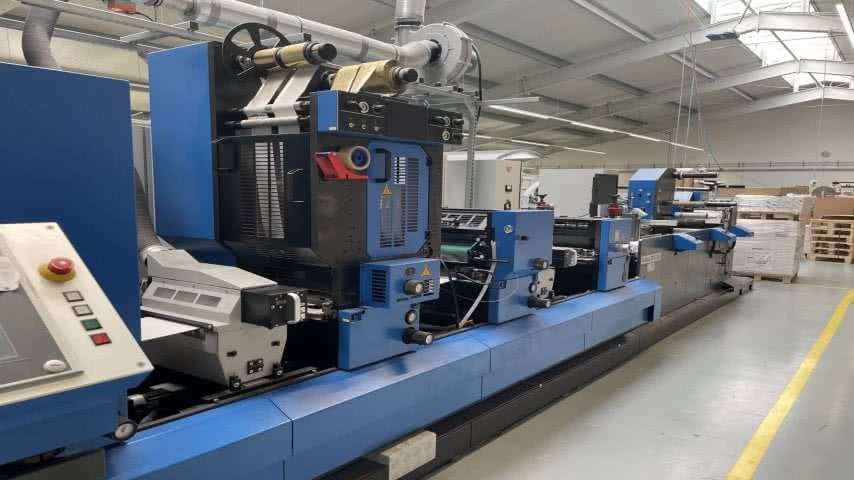

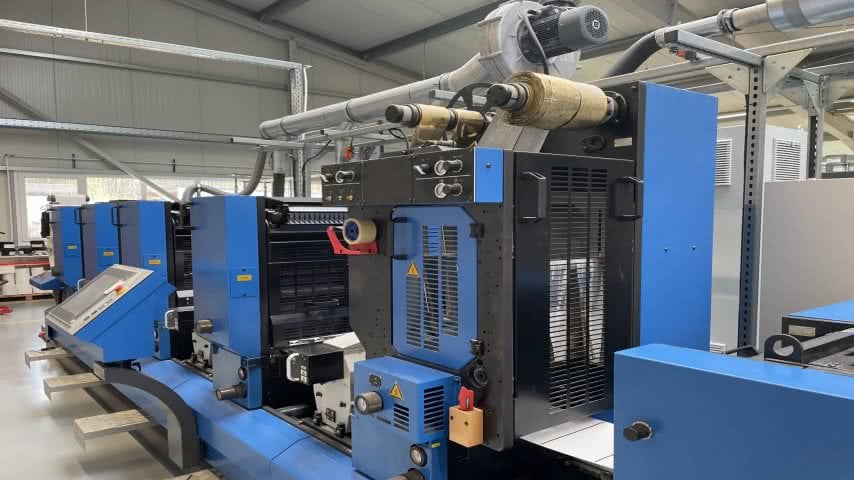

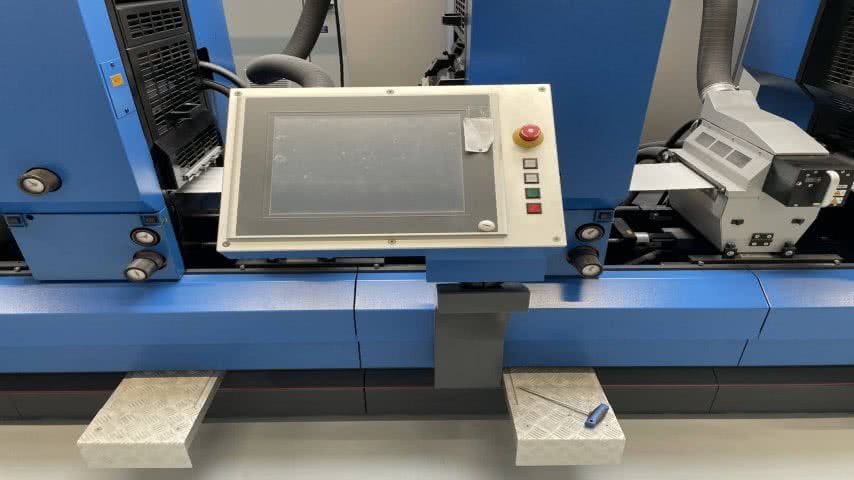

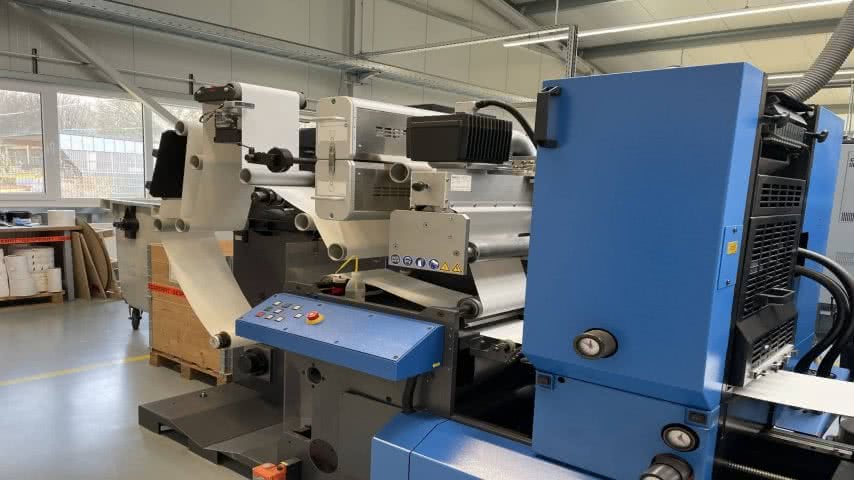

Gallus, TCS 250
- Reference Number: 41152
- Manufacturer: Gallus
- Type : TCS 250
- Year:2016
- Size:265 mm

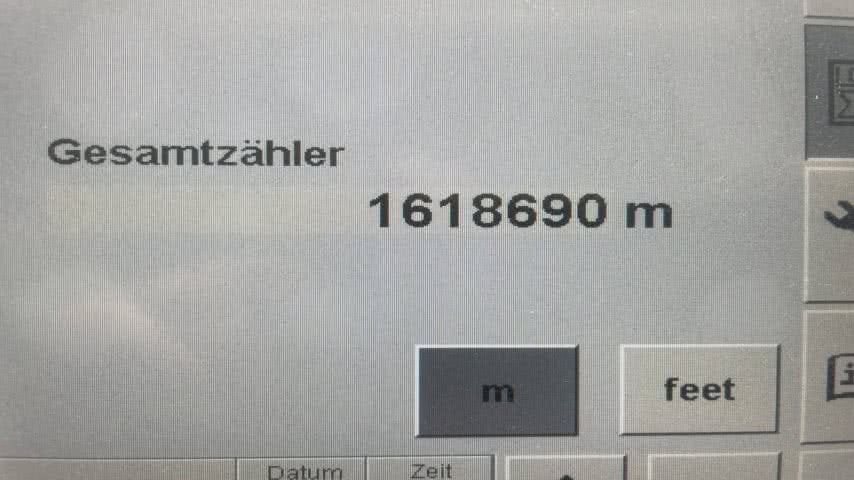

- Impressions:2 Mio
- Status:Stock
- Location:Germany
- Price:on request
- Incoterm: FCA
- Description:
- Speed: 11.000 T/h
- Cylinder circumference: 254mm
- Web Width: 265mm
- Hotfoil Stamping Speed: 8,000 cycles/h
- Max print size width: 265 mm
- Min print size width: 130 mm
- format length graduation: 0,01 mm
- Machine Voltage: 400V
- Voltage Peripherals: 230V
- Net Frequency: 50hz
- Feeding Unit Web Cleaning
- Corona Pretreatment
- Trimming and Suction
- Paper: 80 bis 180 g/m²
- Carton: up to 300g/m² at max. 0.3mm
- Adhesive Bonds: commercially available
- UV Offset
- Printing Units: 4
- Coating Units: 1

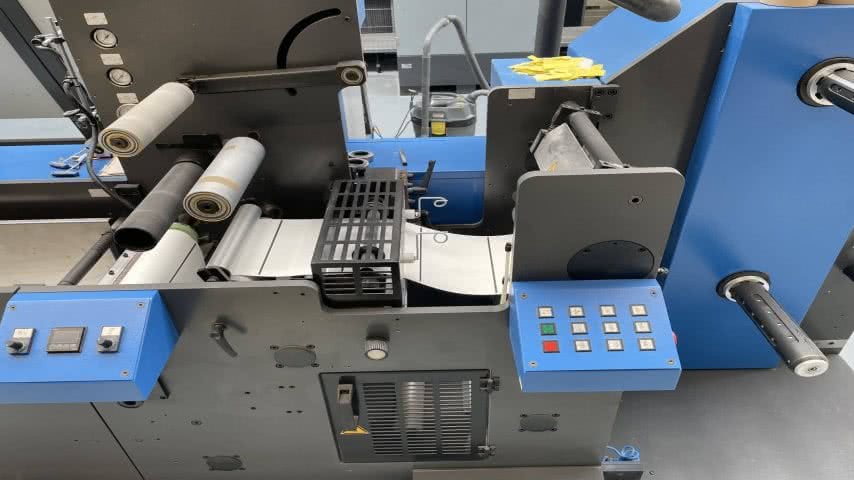

- Rotary Die Cutter Units: 1
- Rotary Hotfoil Embossing Unit
- Web Inspection
- Web Inspection type: Powerscope 4000 manual
- Drying Model: Uviterno Coldstar
- Water cooled
- IR or UV: UV
- Trimming Knives: 4
- Mesh Pulling Monitoring
- IR Dryer
- Max. Web Diameter: 800mm
- Remote Maintenance
- Plate Tool
- Maintenance Tools
- Product description:
- The Gallus TCS 250, manufactured by Gallus in 2016, is a high-performance label printing press designed for efficiency and precision. With a format of 265 mm and a print count of 2 million, this machine is currently available in stock and located in Germany. This press is equipped with a range of advanced features to meet various printing needs. It operates at a speed of 11,000 impressions per hour and has a cylinder circumference of 254 mm, accommodating a web width of 265 mm. The hotfoil stamping speed is 8,000 cycles per hour, with a maximum print size width of 265 mm and a minimum of 130 mm, allowing for precise format adjustments in increments of 0.01 mm. The machine operates at a voltage of 400V for the main unit and 230V for peripherals, with a net frequency of 50Hz. Key features include a feeding unit with web cleaning, corona pretreatment for enhanced adhesion, and trimming and suction capabilities. The press can handle paper weights ranging from 80 to 180 g/m² and carton up to 300 g/m² with a maximum thickness of 0.3 mm. It is compatible with commercially available adhesive bonds and supports UV offset printing. The configuration includes 4 printing units, 1 coating unit, 1 rotary die cutter unit, and a rotary hotfoil embossing unit. Additional features include web inspection via the Powerscope 4000 manual system, a Uviterno Coldstar water-cooled drying model with UV capabilities, 4 trimming knives, mesh pulling monitoring, and an IR dryer. The maximum web diameter is 800 mm, and the press is equipped with remote maintenance capabilities, a plate tool, and maintenance tools for ease of use and upkeep.
