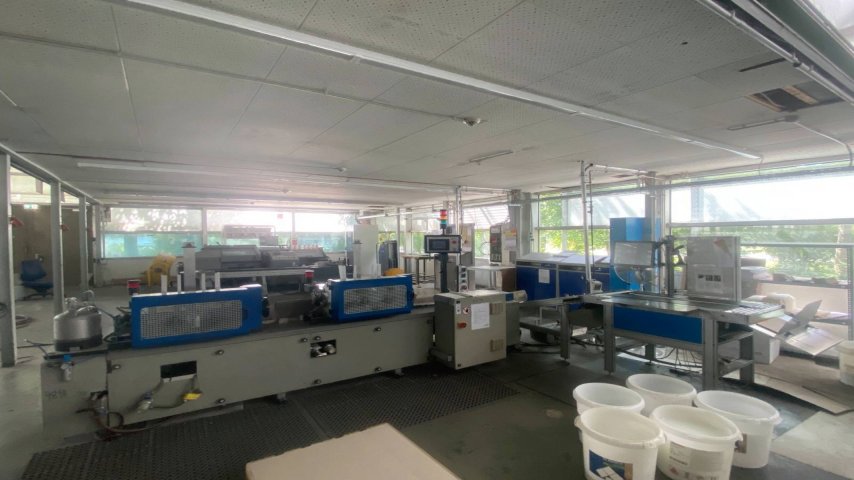

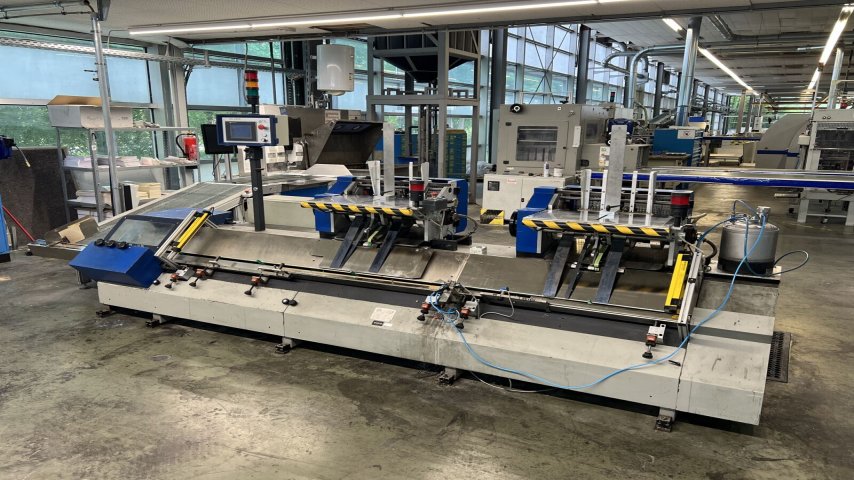

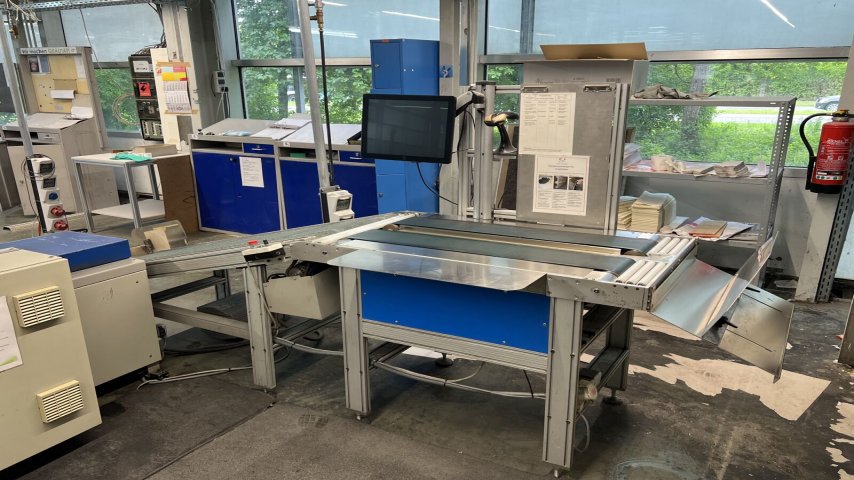

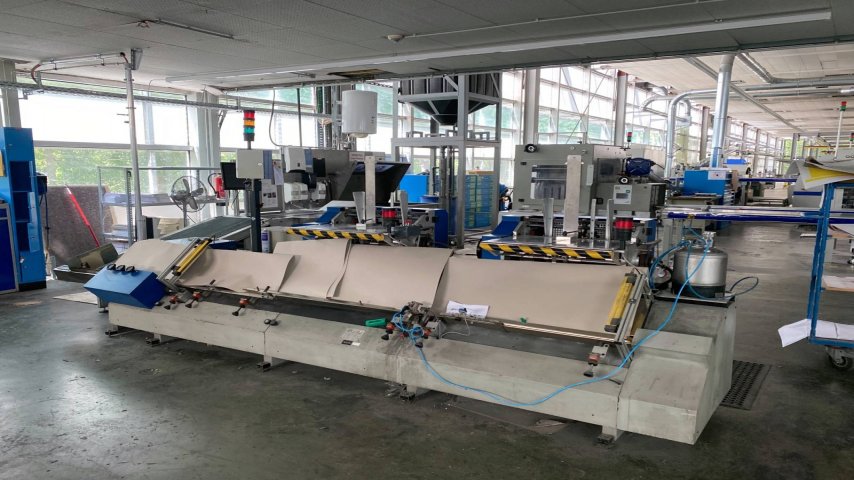

MBT, IRS 5055

General Data:

Whatsapp

Description:

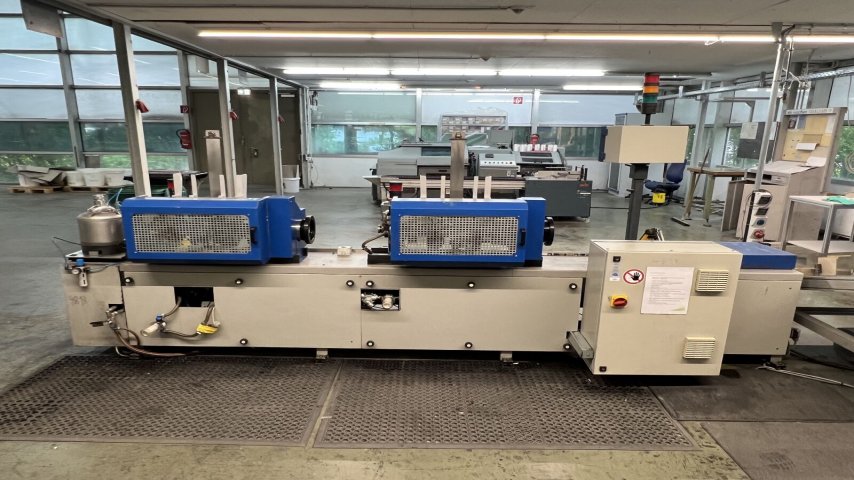

• Sheet feeder:
• Two drum feeders with gripper system
• Belt conveyor channel for product conveying
• Surface with rice paper structure to protect the product
• Front stop made of aluminum
• Side guides with sorting screws for sheet positioning
• Screw ejector for precise bow positioning
• Sheet control system:
• Double sheet inspection using mechanical thickness measurement
• Misaligned bow detection using photocell
• Photocell-controlled activation of the second feeder and glue injection timing
• Glue unit:
• Hot melt or cold glue application (configurable)
• Glue injector with digital keyboard setting
• Delivery:
• Double roller press station for optimal adhesion

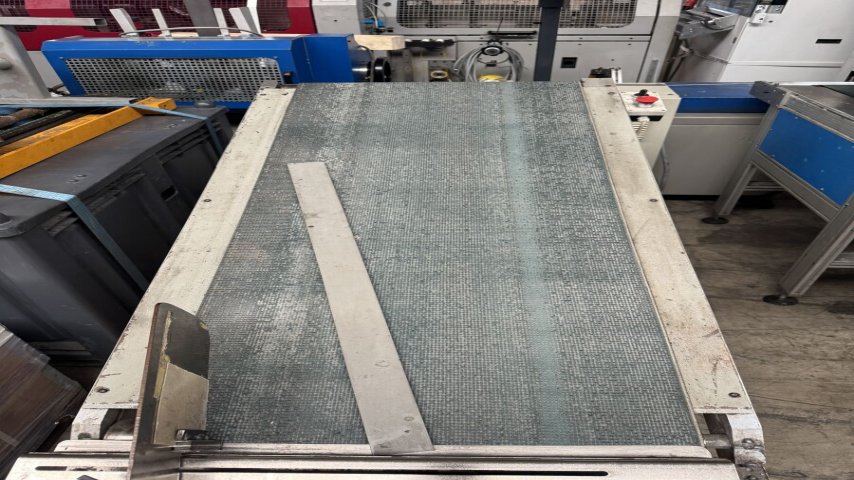

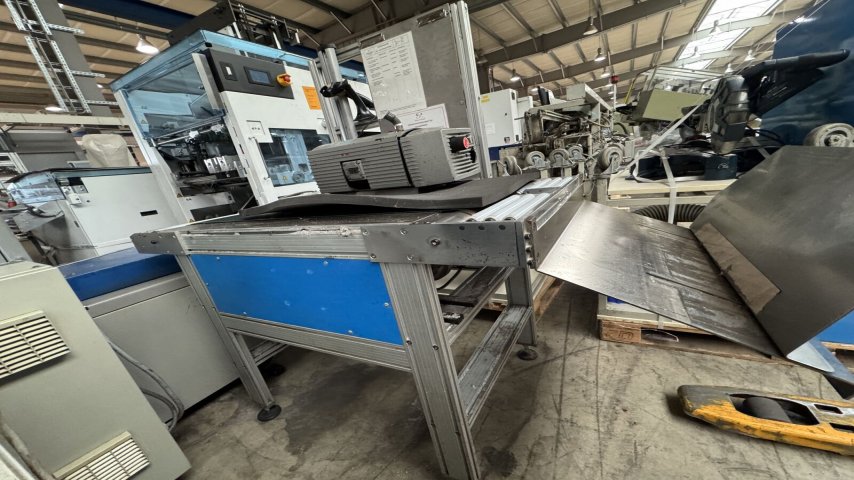

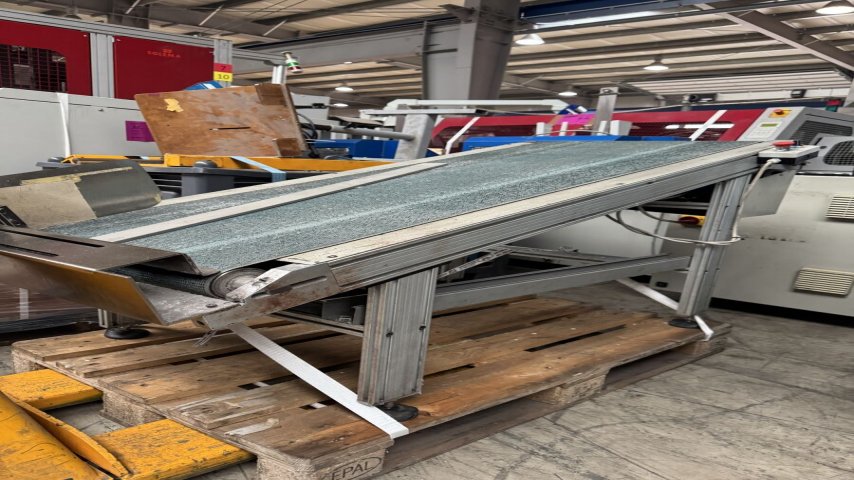

• Inclined conveyor belt for shingled product stacking at the exit
• Control system:
• SPS control unit

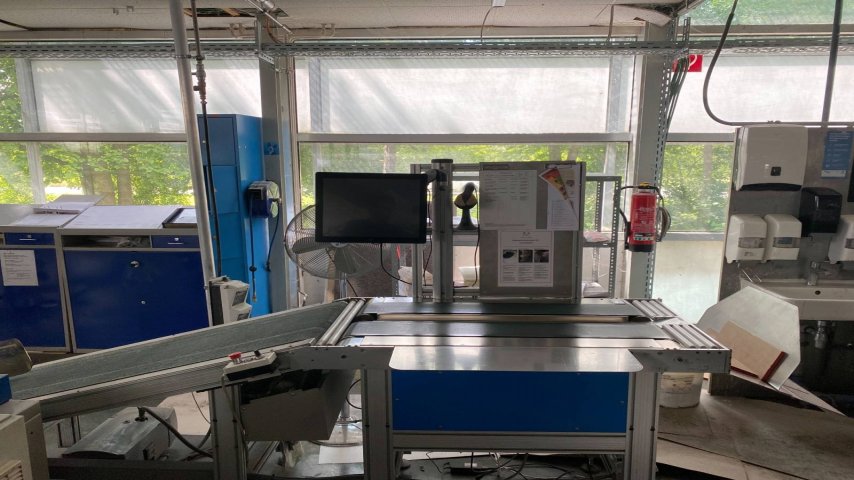

• Touchscreen control panel
• Safety system with light barriers
• Technical data:
• Min. Format 100 × 150 mm
• Max. Format 320 × 550 mm
• Max. sheet thickness 5 mm
• Maximum mechanical speed 6,000 cycles/hour
