Wohlenberg, Master E

General Data:

Reference No.: 41323
Manufacturer:Wohlenberg
Type:Master E
Year:2005
Size:75 x 320 mm
Location:Germany
Price:on request
Incoterm: FCA

Product description:

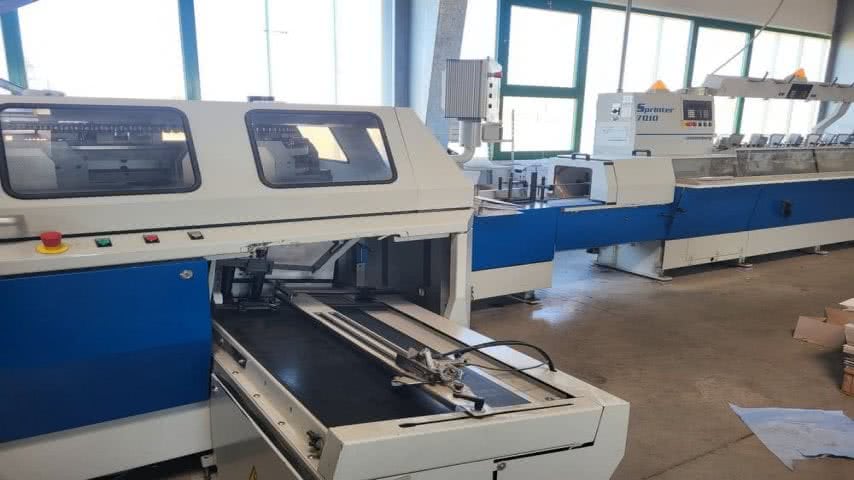

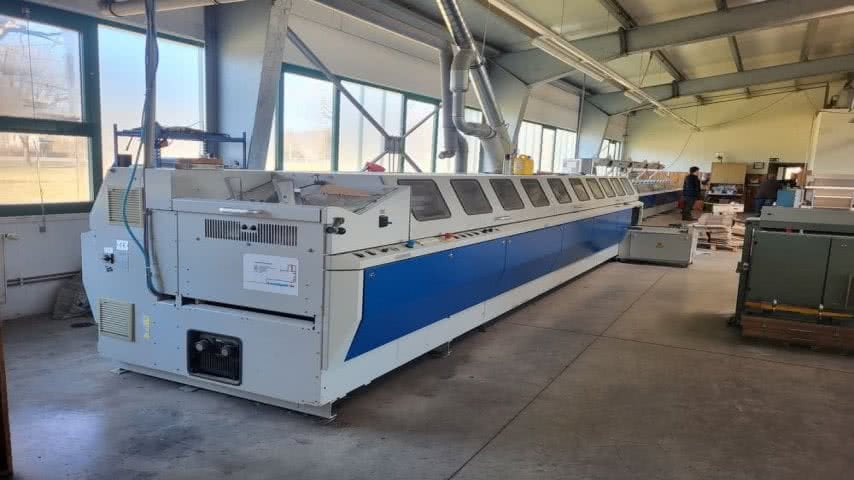

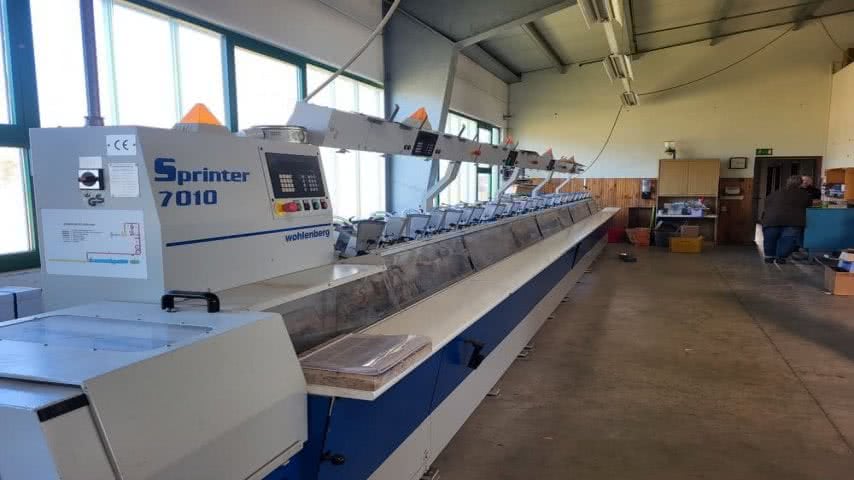

The Wohlenberg Master E, manufactured in 2005, is a high-performance gathering machine designed for efficient bookbinding processes. Located in Germany, this machine features a connecting bridge and operates at speeds ranging from 1,000 to 6,500 cycles per hour, with an inline speed of up to 8,000 cycles per hour. It includes a dust extraction station with a suction nozzle to maintain a clean working environment. The Master E can handle product heights from 140 to 435 mm and document widths from 75 to 370 mm. It is equipped with a gathering machine, the Sprinter 7010, which has 16 gathering stations and is controlled by a PLC system. The machine features a high-performance spine preparation tool, 18 clamps, a small format device, and a pressing station. It also includes electronic double sheet control, missing sheet control, and can handle product widths from 105 to 320 mm with a minimum paper weight of 70 gsm. Additional features include a main milling station, backlining station, scoring station, and cross stacker delivery. The machine can handle product thicknesses from 2 to 62 mm and includes a manual feed station with a maximum layer thickness of 3 mm and a clamp opening range from 12 to 90 mm. For binding, it features a hotmelt spine gluing station with PUR spine gluing capabilities, a hotmelt side gluing station, and a cover feeder. The machine also includes two pressing stations and is compatible with the Kolbus HD 140-P, manufactured in 1996. This Wohlenberg Master E is ideal for businesses seeking a reliable and efficient bookbinding solution.
