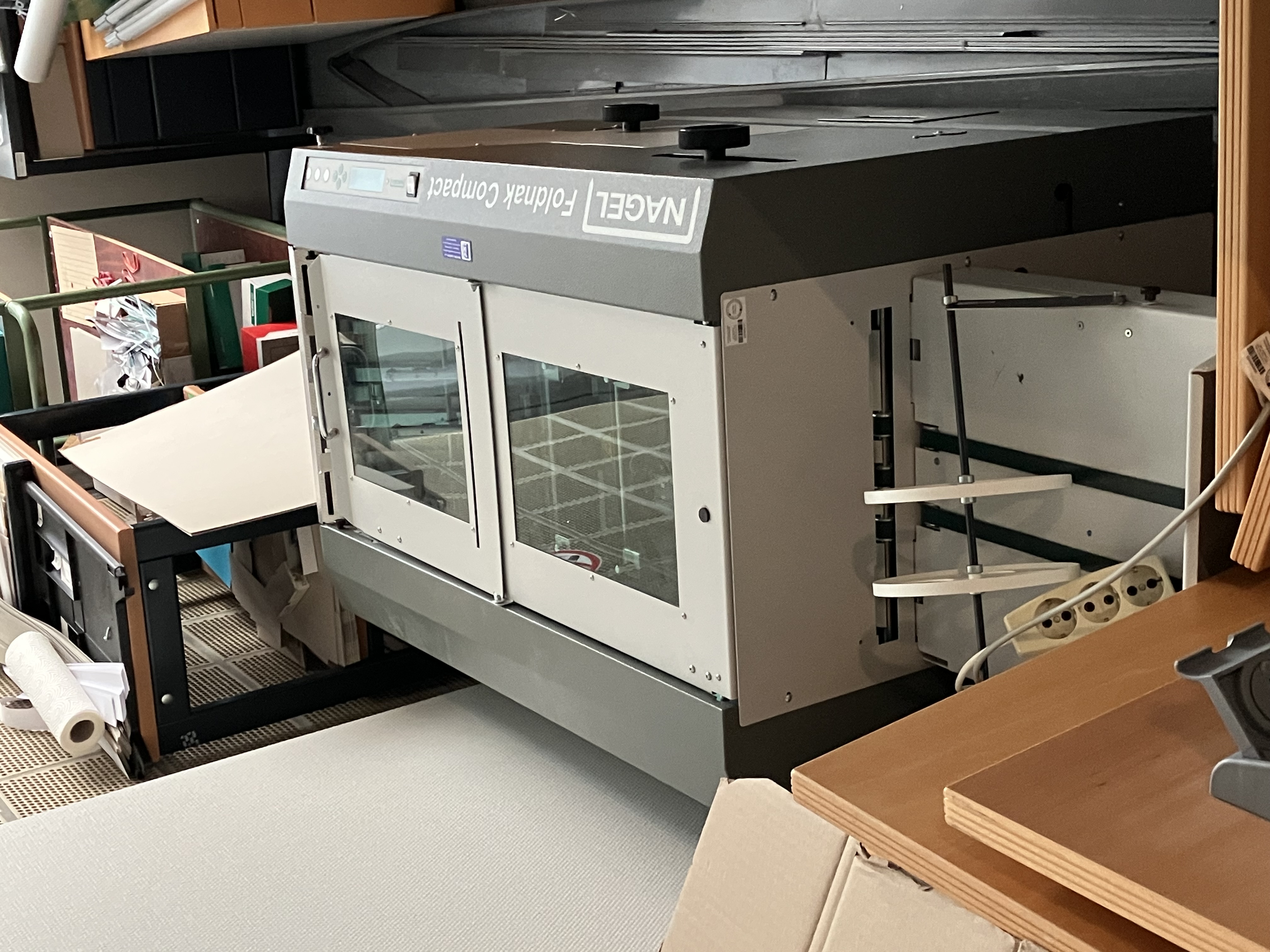

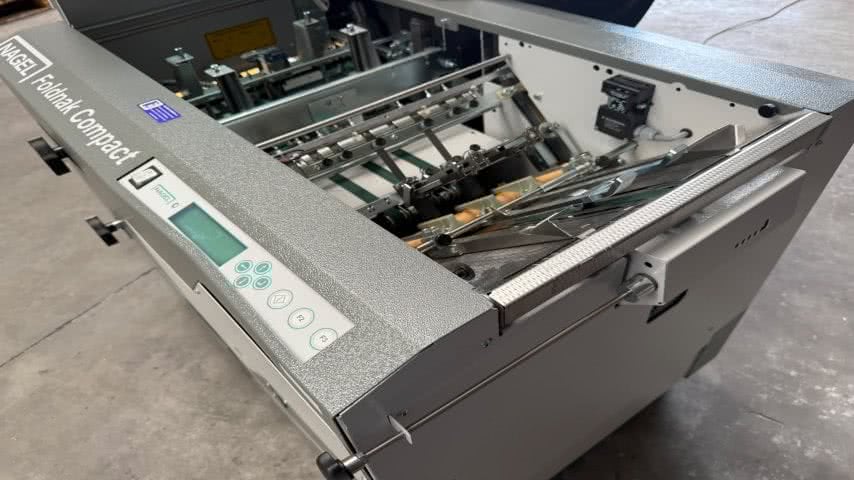

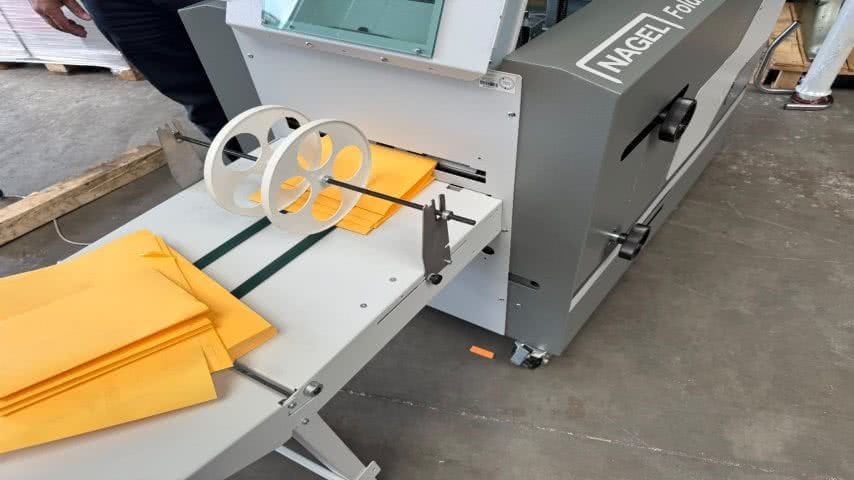

Nagel, Foldnak compakt booklet maker with trimmer
- Reference No.: 41677
- Manufacturer:Nagel
- Type:Foldnak compakt booklet maker with trimmer
- Year:2011

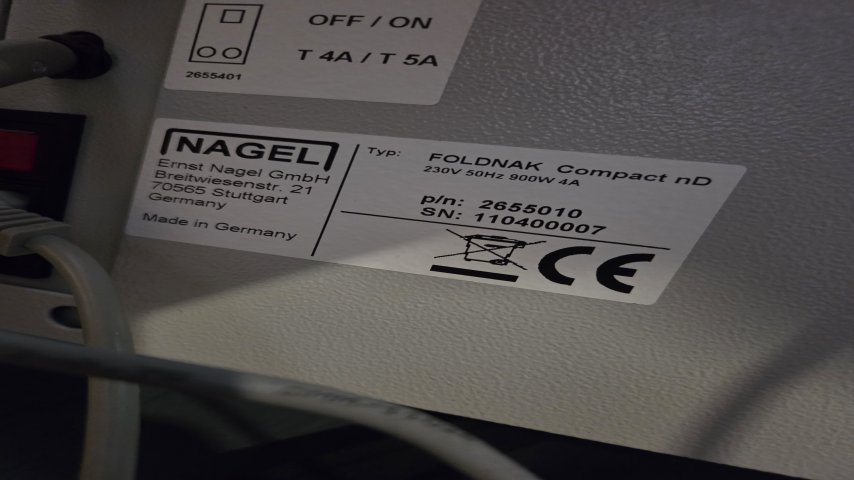

- Serial No.: 110400007
- Size:325 x 450 mm
- Status:In Printshop
- Location:Germany
- Price:on request
- Incoterm: FCA
- Booklet Size (min./max.): 105 x 210 mm to 325 x 450 mm Booklet Thickness: Max. 25 sheets (80 gsm) or up to 5 mm Max Speed: Up to 2,000 booklets per hour Stapling Options: Flat or loop (ring) staples Stapling Heads: Up to 4 heads can be used on 6 positions (2 standard) Power Supply: 220 V, 10 A Dimensions (H x W x D): 86 cm x 103 cm x 71 cm Net Weight: 240 kg
- regular and optional eyelet sewing (standard staples, cheap to use)Stitching Heads:
- adjustable heads
- possibility to turn off sewing or folding (this allows, for example, sewing only)
- triggering from a button or a photocell
- counter of copies made
- lateral and frontal alignment
- indicator light indicating lack of staples
- SRA3 format Supports non-standard formats.
